Rockdoor 3D Hinge

5.0 out of 55 reviews

£24.99including VAT

Buy more, pay less
1£24.99 each, from
2 to 3£21.24 each, from
4 or more£17.49 each, from

Colour Choose one

Opening Direction Choose one

In stockGet it Fri 20 to Sat 21 NovemberBy First Class if you order within 20 hrs

The Rockdoor hinge, explained

  • Rockdoor Trusted Installer since 2015We fit Rockdoors across the Midlands, so we know the parts.
  • Order by 2pm, sent todayMonday to Friday. Later orders go the next working day.
  • 14-day returnsUnused and in its packaging. Returns and refunds
  • Secure checkoutCard payments go through Stripe. We never see your card number.

Description

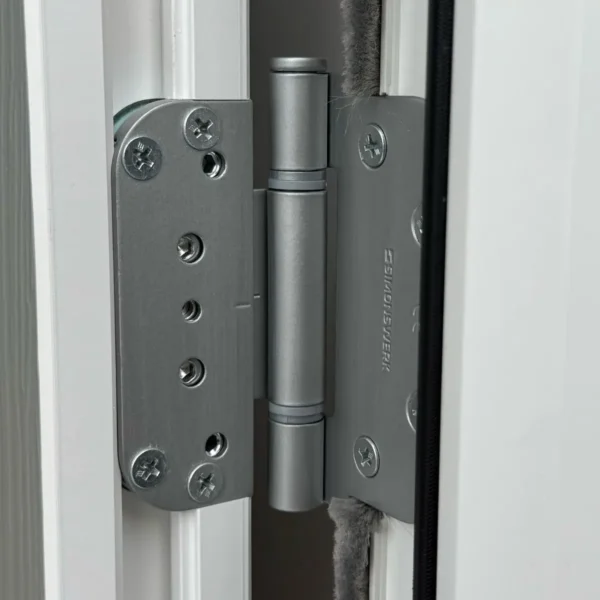

Replacement Rockdoor Hinge – 3D Adjustable

This replacement 3D adjustable hinge for your Rockdoor allows for full 3D adjustment within the door frame, making it easy for one person to carry out adjustments.

Available in Satin Silver, Black and Polished Gold

Inward or outward opening? Choose inward opening if your door opens into the house, and outward opening if it opens out. If you’re not sure, match the hinges on your door now, or get in touch and we’ll help you check.

  • Easy Adjustment:  The 3D hinge allows for easy adjustment in all three directions, ensuring perfect door positioning.
  • 3D Adjustable Hinge Designed to support up to 70 kg, the hinge is highly versatile and robust.

Technical Data

  • Load Capacity (3 Hinges): 70.0 kg
  • Height: 101.6 mm
  • Width: 88.0 mm
  • Knuckle Diameter: 13.0 mm
  • Leaf Thickness: 2.5 mm
  • Receiver Depth: 14.0 mm

Finishes

  • Powder-coated colours: Satin Silver, Black and Polished Gold

Adjustment Range

  • Height: +/- 3 mm
  • Side: +/- 2 mm
  • Depth: +/- 4 mm

Product Features

  • Quick and easy to mount
  • Maintenance-free
  • MSTS Security device for outward opening doors
  • Three-way adjustable hinges allow horizontal, vertical, and compression adjustments by turning socket screws

Note Fixing screws are not supplied.

Specification

Weight0.4 kg
ColourPolished Gold, Black, Satin Silver
Opening DirectionInward opening, Outward opening

Reviews

5.0★★★★★5 reviews

  • 5 stars5
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0
  1. ★★★★★Gerard D.Bought here

    fits great saved my self a small fortune.

  2. ★★★★★Stephen H.Bought here

    Very good thanks

  3. ★★★★★AnonymousBought here

    Great service with very quick delivery. Can't fault them. Be aware I assumed these were exactly the same as my original "rockdoor" door hinge but the frame side hinge plate had slightly different hole configuration to my existing door, this wasn't an issue i just swapped it with the old plate which was simple to do but that may not be an option for some people.

  4. ★★★★★Chris M.Bought here

    Thanks for availability and prompt delivery

  5. ★★★★★AnonymousBought here

    Its an original product, hence the price. Fits perfectly and works as expected. Delivery was excellent. I would buy from VerySecuredoors again!

Every review here is from someone who bought the part from us.

We email a review link a few days after an order arrives. Bought one and can’t find the email? Call 0800 690 6870 and we’ll send it again.

Delivery and returns

Sending
Orders placed by 2pm, Monday to Friday, are sent the same day. Later orders go the next working day.
Delivery
Royal Mail First Class (1 to 2 working days) or Standard, which is Second Class (3 to 5 working days). You choose at checkout, where the price is shown.
Where
Mainland UK only.
Back-order
If a part is on back-order, it usually reaches you four to five working days later. The page shows the dates before you buy.
Returns
Send back unused items within 14 days of delivery for a full refund. You pay the return postage, and the original delivery charge is refunded only if the item is faulty or we made a mistake.
Faulty or wrong
We’ll replace it or refund you in full, return postage included.
